1. Universal use:
100-240V wide voltage design, compatible with power grid standards of various countries
2. Accurate wind control:
three-speed speed regulation covers different needs from light wind to strong wind
3. Controllable cost:
copper/aluminum/CCA winding solutions are optional to meet the budget performance requirements of different customers
4. Ultra-quiet operation:
special dynamic balance design, working noise is only 35 decibels

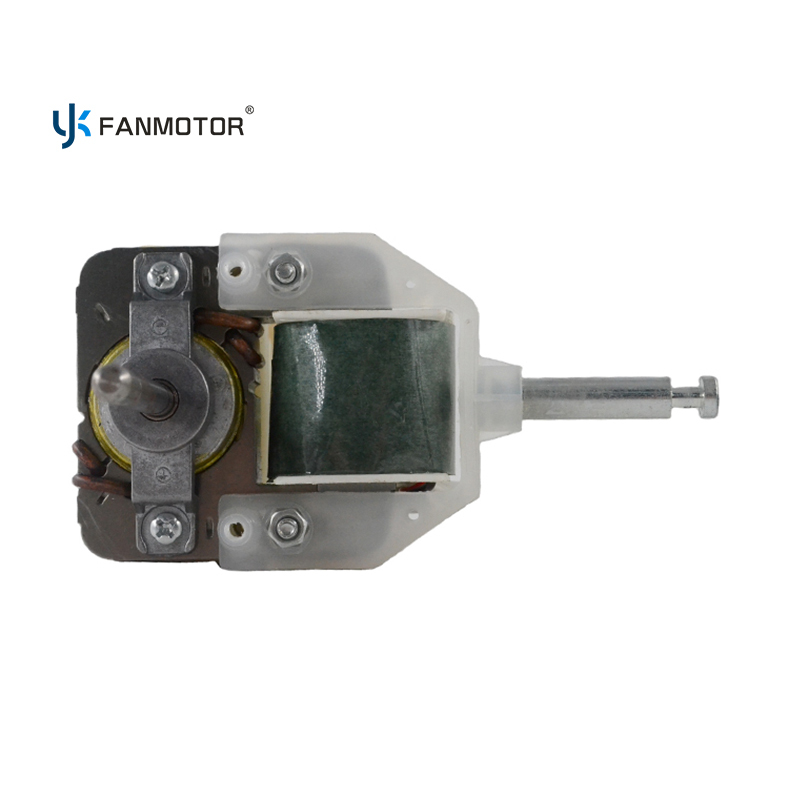

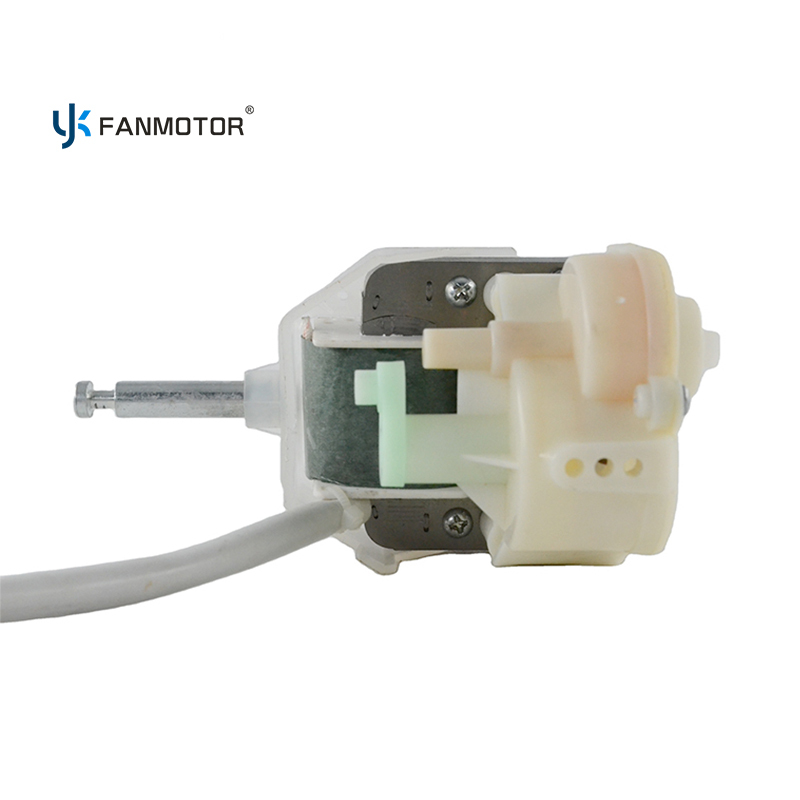

The core power component of a household desktop fan is suitable for living rooms, bedrooms and other scenes.
It provides three wind speed adjustments to meet daily cooling needs. The lightweight and silent design is particularly suitable for home and office use.
| Parameter Name | Parameter Value |
|---|---|
| Type | Asynchronous motor |
| Phase | Single-phase |
| Application | Home appliance 9 inch table fan |
| Stator size | 60*12/14/16mm |
| Winding | 100% Copper wire(can be aluminum or CCA) |
| AC voltage | 100-240V |
| Frequency | 50-60Hz |
| Power | 8-30W |
| Rotating speed | 1700-2100r/min |
| Speed | 3 Speed |
| Insulation class | Class B |
